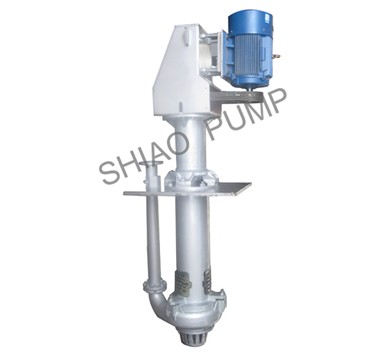

Liquid slag slurry pump
Brief Introduction for Liquid Slag Slurry Pump:
MV(R) series of liquid slag slurry pump is vertical type centrifugal slurry pump, which suitable for pumping abrasive and erosive slurry. The series of pump generally be operated and worked underground or immersed in the tank, it doesn't need any shaft seal or shaft seal water, it can be normal work even the feed-in rate is not enough.
Liquid slag slurry pump can be divided into PV type and PVR type, both have same structure.while the PV type use metal material for its flow-parts that suitable for pumping abrasive and erosive slurry, PVR type use anti-corrosive rubber material for its flow-parts that suitable for pumping corrosive and erosive slurry.
Both PV(R) series of liquid slag slurry pump widely applied in building materials, metallurgy, mining, coal mining, thermal power generation, and other sectors.
Meanings of the model: MV65Q(R)
65---- Press out opening is 65mm
M---- Wear-resistant high chromium alloy material
V---- Liquid slag slurry pump
R---- Rubber liner
MV Series of Liquid Slag Slurry Pump Performance Parameters:
Model | Press Out Opening (mm) | Rotate Speed (r/min) | Performance Parameters | Matched Power (kW) | Impeller Diameter (mm) | ||
Flow Rate Q(m3/h) | Pumping Head H(m) | Efficiency η(%)) | |||||
MV40P(R) |
40
|
1000-2200
|
17-43.2
|
4-28.5
|
40
|
15
|
188
|
MV65Q(R) |
65
|
700-1500
|
18-114
|
5-31.5
|
60
|
30
|
280
|
MV100R(R) |
100
|
500-1200
|
54-289
|
5-36
|
62
|
75
|
370
|
MV150S(R) |
150
|
500-1000
|
108-479
|
8.5-40
|
52
|
110
|
450
|
