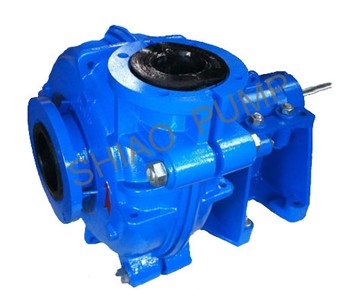

Rubber slurry pump


    Brief Introduction for Rubber Slurry Pump:
    Structure of Rubber Slurry Pump : RH series of rubber slurry pump is cantilever centrifugal slurry pump, horizontal double shell axial-suction pump. The pump press out opening can be 45°interval adjusted according to the requirements. And the pump to be fixed and operated in eight different rotation angles.
    MOC of Rubber Slurry Pump: RH series of rubber slurry pump has replaceable rubber liner, and its impeller, protection plate, front and backward cover all use wear-resistant and corrosion-resistant nature rubber.
    Operations of Rubber Slurry Pump: RH series of rubber slurry pump widely applied for pumping small size, no sharp corner particles and high density slurry, also for pumping corrosive and erosive slurry.
    Sealing Type of Rubber Slurry Pump: Packing seal, Associated-Impeller sealing, Packing + Associated-Impeller sealing, Mechanical seal, and etc.
    Drive Type of Rubber Slurry Pump: DC Drive; CR Parallel Belt Drive; ZVZ Up and Down Belt Drive; CV Vertical Belt Drive, and etc.

    Meanings of the model: RH75C
    R----Anti-corrosive rubber material
    75----Pump Press out opening is 75mm
    H---- Heavy type slurry pump
    C----Bracket style

    RH Series of Rubber Slurry Pump Performance Parameters :

Model Max.Power  (kw)   Clean Water Performance Impeller
Flow Rate Q Pumping Head  H(m) Rotate Speed  n(r/min) Max. Efficiency η(%) Net Positive Suction Head NPSH)(m) Nos. Diameter   (mm)
(m3/h) (L/S)
RH25B 15 10.8-25.2 3-7 7-52 1400-3400 35 3.2 5 152
RH40B 15 25.2-54 7-15 5.5-41 1000-2600 50 2.5-5 5 178
RH50C 30 36-75.6 10-21 13-39 1300-2100 55 3-7 5 213
RH75C 30 79.2-180 22-50 5-34.5 800-1800 59 2.2-6 5 245
RH75D 60
RH100D 60 144-324 40-90 12-45 800-1350 65 3-7 5 365
RH100E 120
RH150E 120 324-720 90-200 7-49 400-1000 72 2-6.5 5 510
