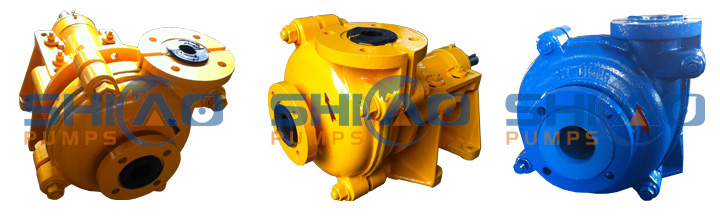

Slurry Pump
Brief Introduction for Slurry Pump:
1. Operation of Slurry Pump: MH series of slurry pump is a kind of cantilever centrifugal slurry pump, widely applied for pumping high abrasive and erosive slurry in Thermal Power Generation, Chemical, Mining, Coal Mining, Metallurgy, Environmental Protection, Municipal water and wastewater and Municipal Engineering.
2. Sealing type of Slurry Pump: Shaft sealing use packing seal, associated-impeller seal and mechanical seal, can be applied for different work condition requirements.Drive Type: DC Drive; CR Parallel Belt Drive; ZVZ Up and Down Belt Drive; CV Vertical Belt Drive, and etc.
3. Structure of Slurry Pump: Use double shell structure, the pump body, pump cover be lined with replaceable wear-resistant metal liner or rubber liner. The pump press out opening can be rotary mounting according to eight angle to meet different installation requirements.
MOC of Slurry Pump: The flow-parts ( including the impeller, cover, protection plater) of the pump all use high hardness and wearable high chromium alloy material or abrasive-resistant and acid-resistant nature rubber material.
4. Advantages of slurry pump: Long service life, high efficiency, low consumption, easy and simple maintenance, low operation cost, reliable operation, etc.
Meanings of the model: MH150D
M---- Wear-resistant high chromium alloy
150---- The Pump Outlet Size is 150mm
H----Heavy type slurry pump
D----Base Plate Type
MH Series of Slurry Pump Performance Parameters :
Model | Max.Power (kw) | Clean Water Performance | Impeller | ||||||
Flow Rate Q | Pumping Head H(m) | Rotate Speed n(r/min) | Max. Efficiency η(%) | Net Positive Suction Head NPSH)(m) | Nos. | Diameter (mm) | |||
(m3/h) | (L/S) | ||||||||
MH25B | 15 | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 |
MH40B | 15 | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 184 |
MH50C | 30 | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 214 |
MH75C | 30 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 |
MH75D | 60 | ||||||||
MH100D | 60 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 5 | 365 |
MH100E | 120 | ||||||||
MH100D | 60 | 180-396 | 50-110 | 7-61 | 600-1600 | 55 | 3-8 | 4 | 372 |
MH100E | 120 | ||||||||
MH150E | 120 | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 |
MH150R | 300 | ||||||||
MH150E | 120 | 360-828 | 100-230 | 7-52 | 400-1000 | 70 | 2.5-6 | 4 | 536 |
MH150R | 300 | 360-828 | 100-230 | 7-52 | 400-1000 | 70 | 2.5-6 | 4 | 536 |
MH200ST | 560 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 5 | 686 |
MH250ST | 560 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 5 | 762 |
MH300ST | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 |
MH350ST | 560 | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 5 | 1067 |
MH350TU | 1200 | ||||||||
MM200E | 120 | 540-1440 | 150-400 | 14-60 | 600-1100 | 73 | 4-10 | 5 | 549 |
