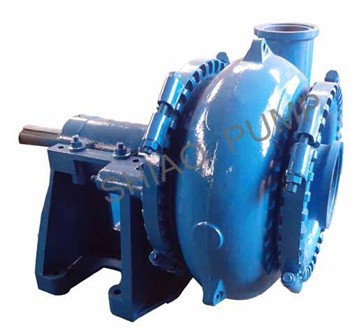

Gravel pump



    Brief Introduction for Gravel Pump:
    MG series of gravel pump integrated the advantages of similar products of both home and abroad then make innovations in hydraulic design, structure design and flow-parts material. It has good characteristics of energy-efficient, small vibration, low noise, stable operation, long service life, and etc. The pump overall performance is ranked at the leading level in nation, while most of the pump efficiency index ranks at the international advanced level. The series of pump has rather big flowing channel, which applied for pumping gravel, mud slurry and solid slurry particles in larger size.

    Structural Features:
    MG series product is a type of centrifugal pump with both horizontal type and single shell structure, which uses special clamp to clamping the pump body and pump cover. The pump press out outlet direction can be fixed in any position of 360°. Easy and convenient installation and operation. The bearing assembly use drum type structure, which easily for adjusting the gap between the impeller and pump body, and it can be dismantled when the maintenance required. The bearing is lubricated by grease.

    MOC( Material of Composition) Features:
    Single shell structure ( without liner plate), the pump body, pump cover and impeller all be manufactured by high hardness and wearable high chromium alloy material.

    Gravel Pump Application:
    Wide pump flowing channel, good cavitation performance , high efficiency, wear and corrosion resistance. This series of pump mainly applied for continuos pumping high abrasive and erosive and big particle size materials those the normal slurry pump can not do. Also suitable for conveying dredging, pumping gravel, river dredging, in-stream sand mining and metal smelting slags, and etc.

    Shaft Sealing Type:
    Packing seal, Associated-Impeller sealing, Mechanical seal.

    Drive Type:
    V-belt driving, Elastic coupling drive, Gear reduction box drive, hydraulic coupling drive, variable frequency drive device, thyristor speed control and etc. It use multi-speed and multi-variation ways to make the pump working under the best conditions and environment. Long service life, high operation-efficient, can meet to multiple extreme poor transportation conditions.

    MG Series of Gravel Pump Performance Parameters:

Model Outlet Opening Diameter  mm Rotate Speed  r/min Performance Parameters Max. Matched Power kw Impeller Diameter mm Max. Size for Through mm
Flow Rate m³/h Pumping Head  H(m) Efficiency  (%)
MG100D
100
600-1400
36-250
7-56
50
60
378
82
MG150E
150
800-1400
180-540
12-52
60
120
378
127
MG200F
200
500-1000
180-820
12-56
60
260
533
178
MG250G
250
400-850
360-1200
12-60
65
600
667
220
MG300G
300
300-700
700-2700
8-70
68
1200
864
241
MG350G
350
300-500
720-3600
18-45
70
600
1016
248
GG350G
400
250-500
720-4320
12-48
70
1200
1067
254
GG150F
150
500-1100
520-900
18-80
70
260
610
140
GG200S
200
500-950
750-1300
20-75
70
560
686
180
GG250G
250
350-700
1400-2700
10-60
70
600
915
210
