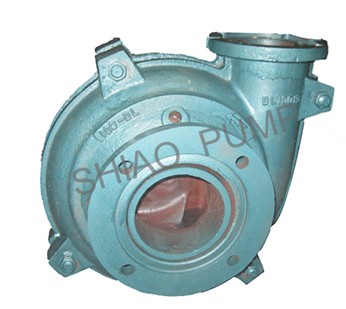

Light slurry pump



    Brief Introduction for Light Slurry Pump:
    1. ML series of light slurry pump is a kind of cantilever centrifugal slurry pump, widely applied for pumping high abrasive and erosive slurry in Thermal Power Generation, Chemical, Mining, Coal Mining, Metallurgy, Environmental Protection, Municipal water and wastewater and Municipal Engineering.
    2. ML series of light slurry pump also called as light type slurry pump, compared with the heavy type slurry pump, light slurry pump has high rotation speed, small dimensions, light weight, that much suitable for pumping fine particles, low density slurry or corrosive and erosive slurry. Generally the slurry concentration weight is less than 30% for the pump conveying, and it also be used for pumping high density but low abrasive slurry.
    3. ML series of light slurry pump is composed by double shell structure, the pump body, pump cover be lined with replaceable wear-resistant metal liner (including impeller, cover, protection plate, etc). Pump body and cover were manufactured by using material of gray cast iron or ductile cast iron. The pump press out opening can be rotary mounting according to eight angle.

    Shaft Sealing Type:
    Packing seal, Associated-Impeller sealing, Mechanical seal.
    Associated-Impeller sealing: Use the impeller with the series-connected associated-impeller to generate the pressure sealing.
    Packing seal: It is a common type of shaft sealing, which applied for various working conditions, can be filled in special materials like polytetrafluorethylene (PTFE), expanding graphite,etc. It has a series of advantages of simple structure, easy and convenient maintenance, etc.
    Mechanical seal: The sealing effect is good, but the cost is high. The pump shaft seal water will be added according to the requirements.

    Meanings of the model: ML100D
    M---- Wear-resistant high chromium alloy
    100---- the pump press out opening is 100mm
    L----Light slurry pump
    D----Bracket style

    ML Series of Light Slurry Pump Performance Parameters :

Model Max.Power  (kw)   Clean Water Performance Impeller
Flow Rate Q Pumping Head  H(m) Rotate Speed  n(r/min) Max. Efficiency η(%) Net Positive Suction Head NPSH)(m) Nos. Diameter   (mm)
(m3/h) (L/S)
ML20A
7.5
1.8-9
0.5-2.5
7-36
1400-3000
40
2.5-3
4
152
ML50B
15
11.5-65
3.2-18
8.5-46
1400-2800
62
2.5-6
4
190
RL50B
15
9-61
2.5-18
3-33
1200-2600
48
2.8-4.5
4
190
ML75C
30
21.6-137
6-38
7-47
900-2400
57
3-6
4
229
RL75C
30
29-155
8-43
9-43
1100-2300
60
3-5
4
229
ML100D
55
47-325
13-90
7-49
800-1800
64
2.5
4
305
ML150E
132
126-570
35-158
10.5-518
800-1500
60
2.5-6
4
381
RL150E
132
72-576
20-160
4-38
800-1300
65
2.5-5.5
4
381
