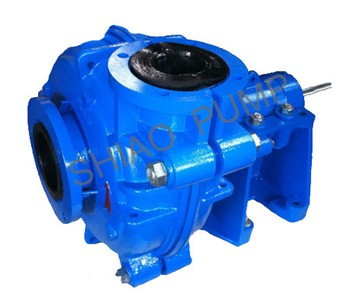

Rubber slurry pump
Brief Introduction for Rubber Slurry Pump:
Structure of Rubber Slurry Pump : RH series of rubber slurry pump is cantilever centrifugal slurry pump, horizontal double shell axial-suction pump. The pump press out opening can be 45°interval adjusted according to the requirements. And the pump to be fixed and operated in eight different rotation angles.
MOC of Rubber Slurry Pump: RH series of rubber slurry pump has replaceable rubber liner, and its impeller, protection plate, front and backward cover all use wear-resistant and corrosion-resistant nature rubber.
Operations of Rubber Slurry Pump: RH series of rubber slurry pump widely applied for pumping small size, no sharp corner particles and high density slurry, also for pumping corrosive and erosive slurry.
Sealing Type of Rubber Slurry Pump: Packing seal, Associated-Impeller sealing, Packing + Associated-Impeller sealing, Mechanical seal, and etc.
Drive Type of Rubber Slurry Pump: DC Drive; CR Parallel Belt Drive; ZVZ Up and Down Belt Drive; CV Vertical Belt Drive, and etc.
Meanings of the model: RH75C
R----Anti-corrosive rubber material
75----Pump Press out opening is 75mm
H---- Heavy type slurry pump
C----Bracket style
RH Series of Rubber Slurry Pump Performance Parameters :
Model | Max.Power (kw) | Clean Water Performance | Impeller | ||||||
Flow Rate Q | Pumping Head H(m) | Rotate Speed n(r/min) | Max. Efficiency η(%) | Net Positive Suction Head NPSH)(m) | Nos. | Diameter (mm) | |||
(m3/h) | (L/S) | ||||||||
RH25B | 15 | 10.8-25.2 | 3-7 | 7-52 | 1400-3400 | 35 | 3.2 | 5 | 152 |
RH40B | 15 | 25.2-54 | 7-15 | 5.5-41 | 1000-2600 | 50 | 2.5-5 | 5 | 178 |
RH50C | 30 | 36-75.6 | 10-21 | 13-39 | 1300-2100 | 55 | 3-7 | 5 | 213 |
RH75C | 30 | 79.2-180 | 22-50 | 5-34.5 | 800-1800 | 59 | 2.2-6 | 5 | 245 |
RH75D | 60 | ||||||||
RH100D | 60 | 144-324 | 40-90 | 12-45 | 800-1350 | 65 | 3-7 | 5 | 365 |
RH100E | 120 | ||||||||
RH150E | 120 | 324-720 | 90-200 | 7-49 | 400-1000 | 72 | 2-6.5 | 5 | 510 |
